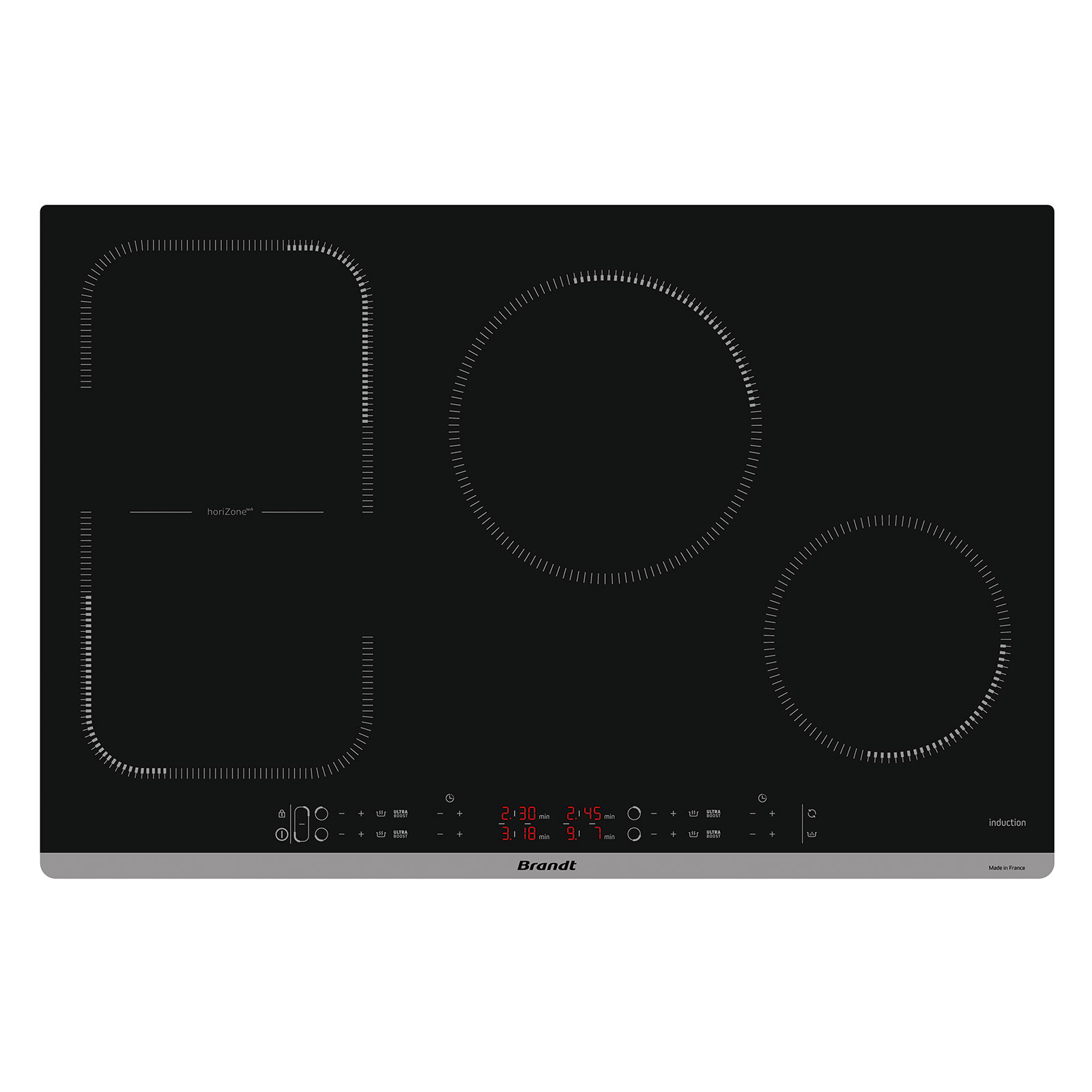

Induction Hob BPI184HUB

- HoriZone
The ultimate outcome of a revolutionary technology, this space of flexible cooking of 40 x 23 cm is the zone of the most complete cooking of the market which can welcome every types(chaps) of bowls: wide, oval, rectangular...

- Ultraboost Function
The ultraboost function allows the hobb to quickly heat up. The heating process can be up to 20% faster than the classic boost function.

- Boil
Function that can boil from 0.5 L up without any overflow and without taking care of timeor power settings. You just need tio set water quantity and validate.

Technical characteristics

Main Specifications

Hob type
Induction
Width (cm)
80
Energy
Electric

Cooking zones

Number of zones
4
Heating element location
Left
Heating element location N°2
Rear Center
Heating element location N°3
Front Right
Type of heating element
Induction
Type of heating element N°2
Induction
Type of heating element N°3
Induction
Dimensions of the heating element (mm)
horiZone 400 x 230
Dimensions of the heating element N°2 (mm)
280
Dimensions of the heating element N°3 (mm)
160
Maxi power for heater (W)
3700
Maxi power for heater (W) N°2
3700
Maxi power for heater (W) N°3
2400
Timer
99 Mins
Timer N°2
99 Mins
Timer N°3
99 Mins

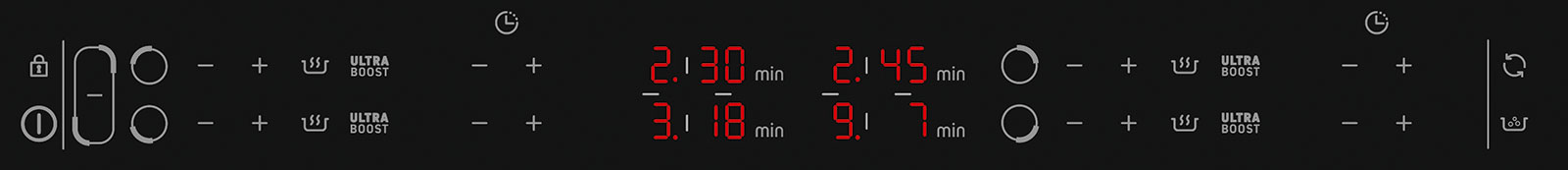

Control panel

Type of control
Buttons
Timer
Yes

Electric Connections

Hob max electric power input (KW)
7.4
Current (A)
32
Voltage (V)
220-240
Frequency (Hz)
50/60
Length electrical supply cord (cm)
130
Plug type
Without

Safety devices

Power Indicator
Flashing 0 in display
Residual heat Indicators
Yes
Central locking
Yes
Securities devices
Pack 10 securities
Saucepan detection
Yes
Certificates of approval
CoC

Dimensions

Dimensions of the packed product HxWxD (mm)
140X940X600
Built in dimensions WxD (mm)
750X495
Overall dimensions above the working surface HxWxD (mm)
60X770X510
Net weight (kg)
13.35
Gross weight (kg)
14.2
