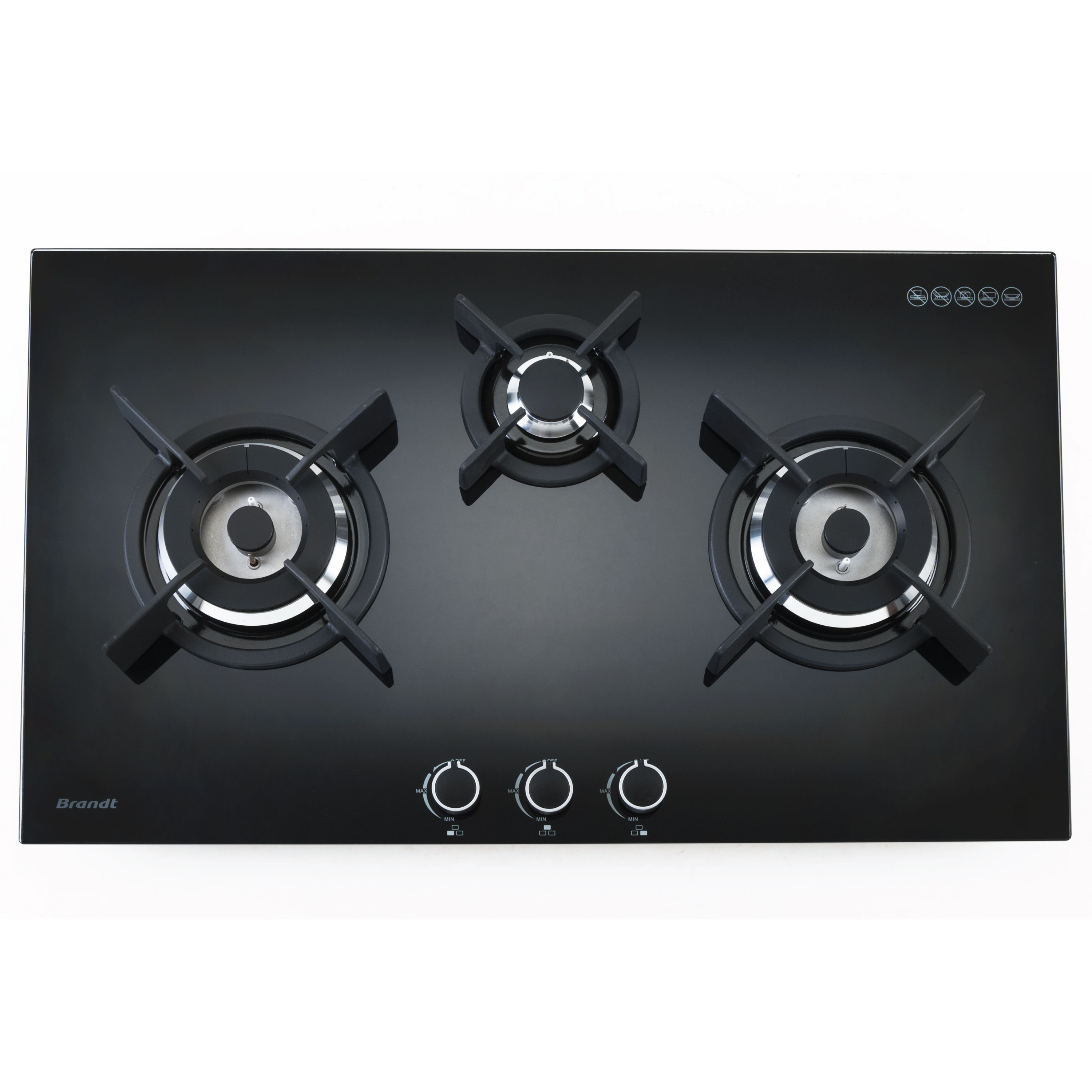

Gas hob TG1493B

Main Specifications

Hob type

Gas

Width (cm)

70

Energy

Gas

Cooking zones

Number of zones

3

Heating element location

Left

Heating element location N°2

Center Rear

Heating element location N°3

Right

Type of heating element

Gas

Type of heating element N°2

Gas

Type of heating element N°3

Gas

Dimensions of the heating element (mm)

Triple Crown

Dimensions of the heating element N°2 (mm)

Auxillary

Dimensions of the heating element N°3 (mm)

Triple Crown

Maxi power for heater (W)

4300 (Town Gas) / 4600 (LPG)

Maxi power for heater (W) N°2

950 (Town Gas) / 1050 (LPG)

Maxi power for heater (W) N°3

4300 (Town Gas) / 4600 (LPG)

Grids

Number of grids

0

Type of grid

Multiple burners

Material of pan support

Cast Iron

Grid colour

Aluminium

Control panel

Type of control

Knobs

Type of energy regulation

Thermocouple

Ignition system

Battery

Electric Connections

Current (A)

10

Voltage (V)

220-240

Frequency (Hz)

50

Length electrical supply cord (cm)

150

Plug type

Without

Gas Connections

Hob maximum gaz power input (kW)

9.55 (Town Gas) / 10.25 (LPG)

Factory Setting Gas Type

LPG

Others gas possibilities

Natural

Gas connection

Nozzle and Seal

Delivered injectors

Butane injectors set

Safety devices

Top Gas Safety Device

Thermocouple

Securities devices

Thermcouple

Certificates of approval

CoC

Dimensions

Dimensions of the packed product HxWxD (mm)

185X800X600

Built in dimensions WxD (mm)

710X410

Overall dimensions above the working surface HxWxD (mm)

X X

Net weight (kg)

11

Gross weight (kg)

12
