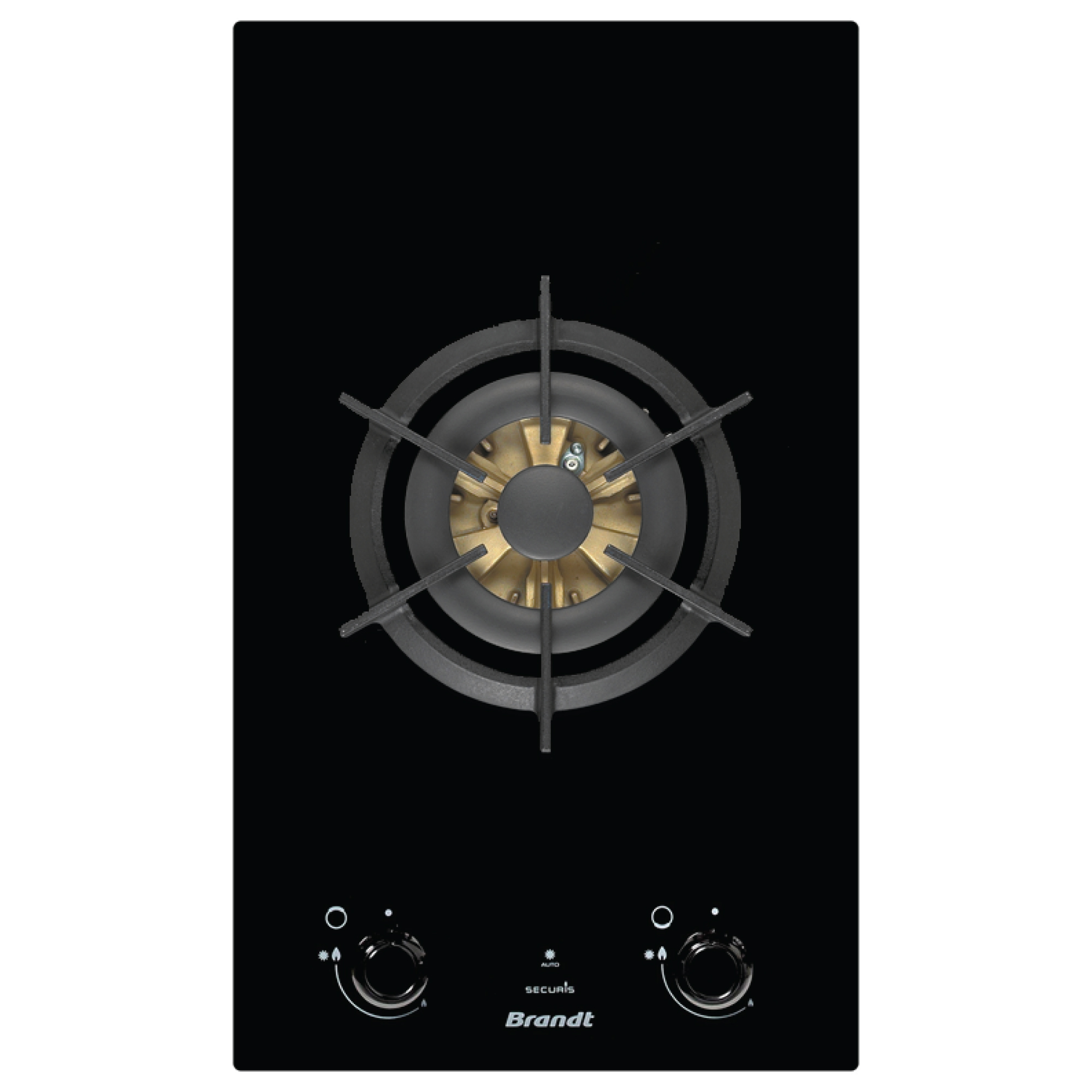

Gas hob BPG6308B

Technical characteristics

Main Specifications

Hob type
Gas
Width (cm)
30
Energy
Gas

Cooking zones

Number of zones
1
Heating element location
Center
Type of heating element N°2
Gas
Dimensions of the heating element (mm)
Triple Crown
Maxi power for heater (W)
4100

Grids

Number of grids
1
Type of grid
Single burner
Material of pan support
Cast iron
Grid colour
Black

Control panel

Type of control
Knobs
Type of energy regulation
Thermocouple
Ignition system
Integrated

Electric Connections

Hob max electric power input (KW)
Current (A)
10
Voltage (V)
220-240
Frequency (Hz)
50
Length electrical supply cord (cm)
150
Plug type
Without

Gas Connections

Hob maximum gaz power input (kW)
4.1
Factory Setting Gas Type
G110/8
Others gas possibilities
Butane 28-30 mbar
Gas connection
Town Gas Nozzle and Seal
Delivered injectors
Injectors G30/29mbar

Safety devices

Top Gas Safety Device
Thermocouple
Securities devices
Thermocouple
Certificates of approval
CoC

Dimensions

Dimensions of the packed product HxWxD (mm)
170X400X590
Built in dimensions WxD (mm)
270X490
Overall dimensions above the working surface HxWxD (mm)
X X
Net weight (kg)
08.2
Gross weight (kg)
9.0
